600W RMS Subwoofer Series
SE10G1 | 10" 1,000 Watt Max Power Car Subwoofer
10"
12"
15"
SE10 | 10" 1,200 Watt Max Power Car Subwoofer
10"
12"
15"
SG6V1 | 6" 500 Watt Max Power Car Subwoofer
6.5"
8"

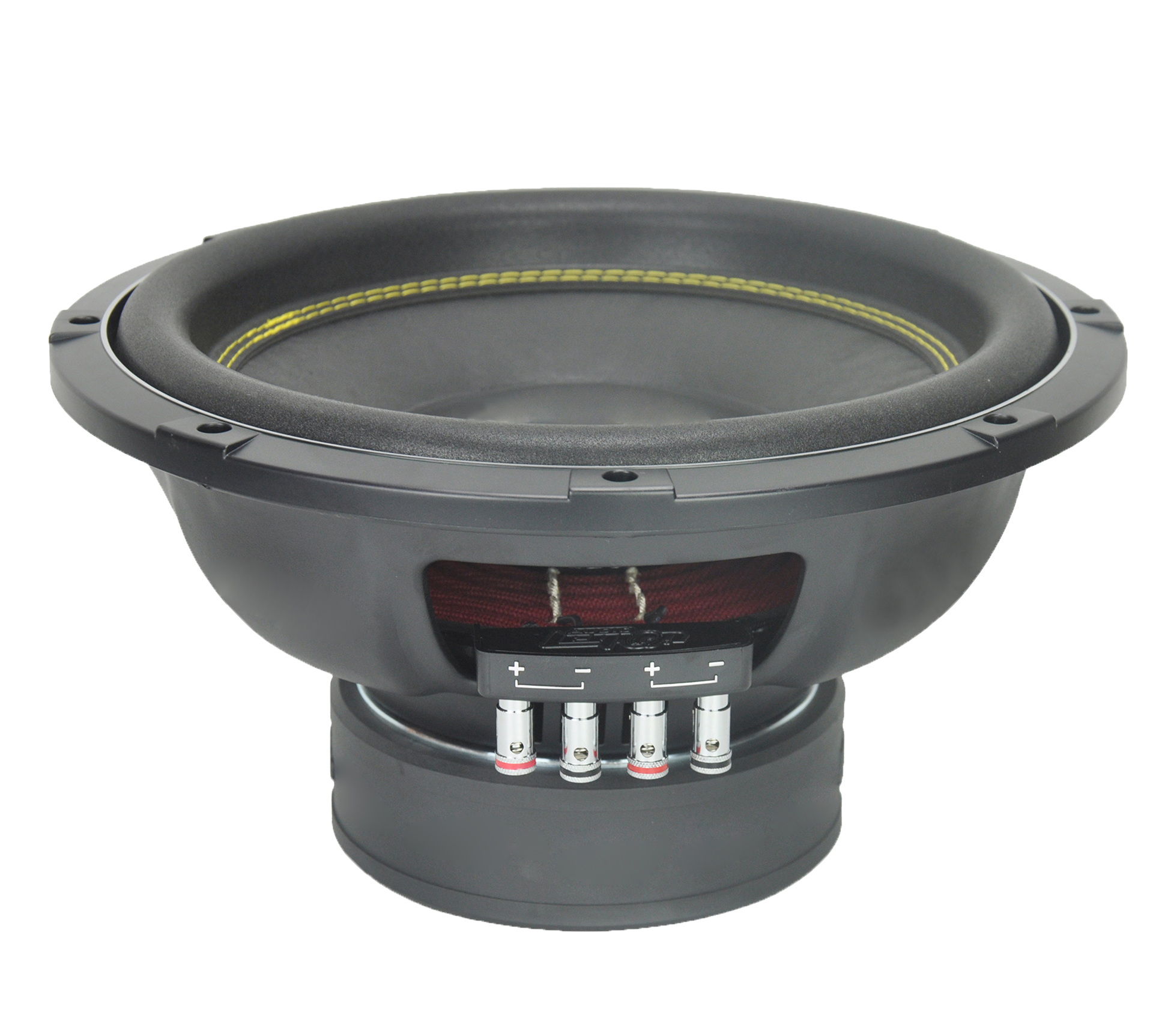

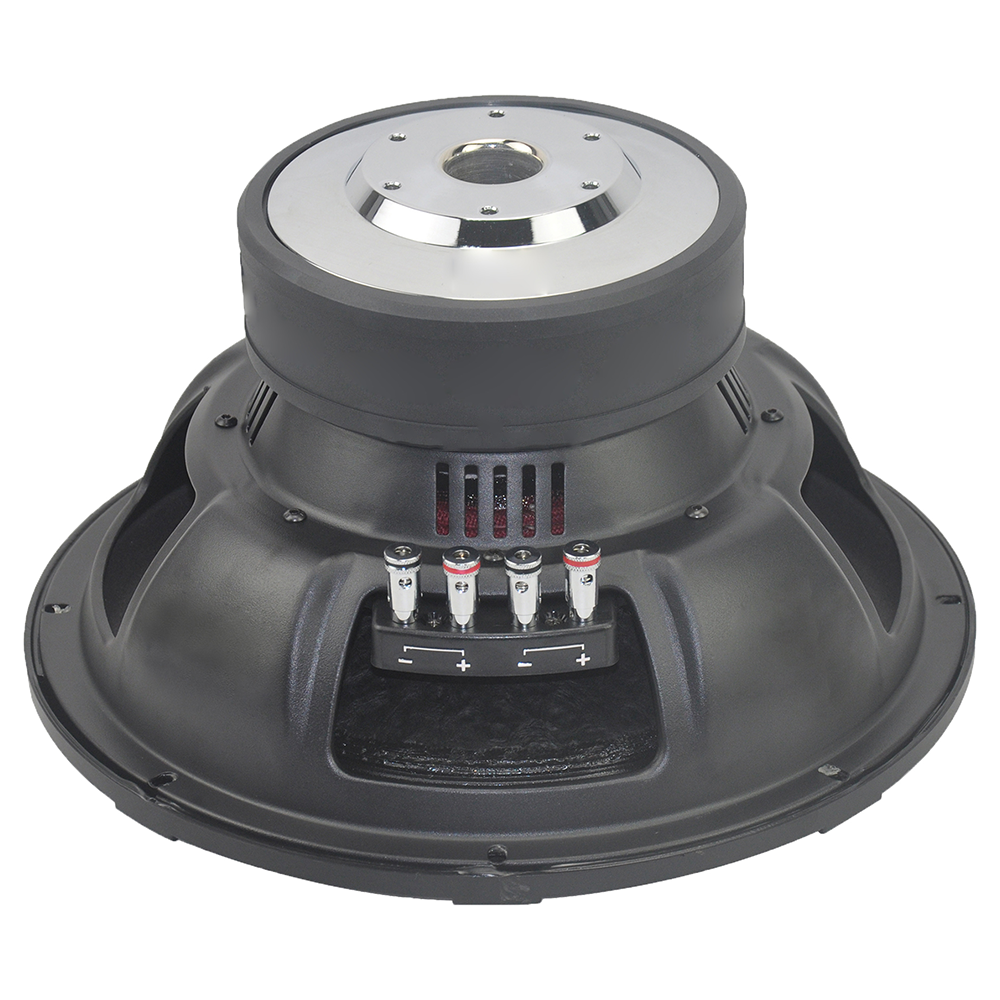

SE10G1 | 10" 1,000 Watt Max Power Car Subwoofer
Detailed specifications for SE10G1 are coming soon.

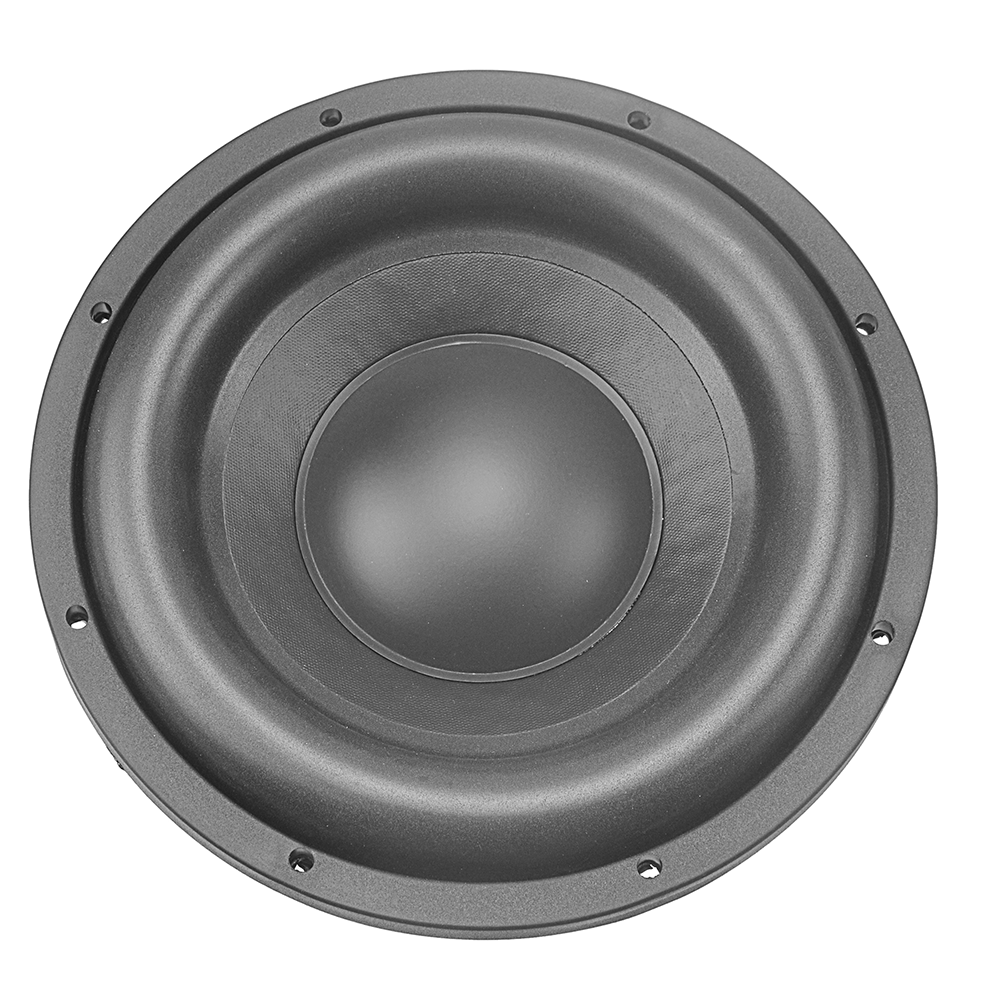

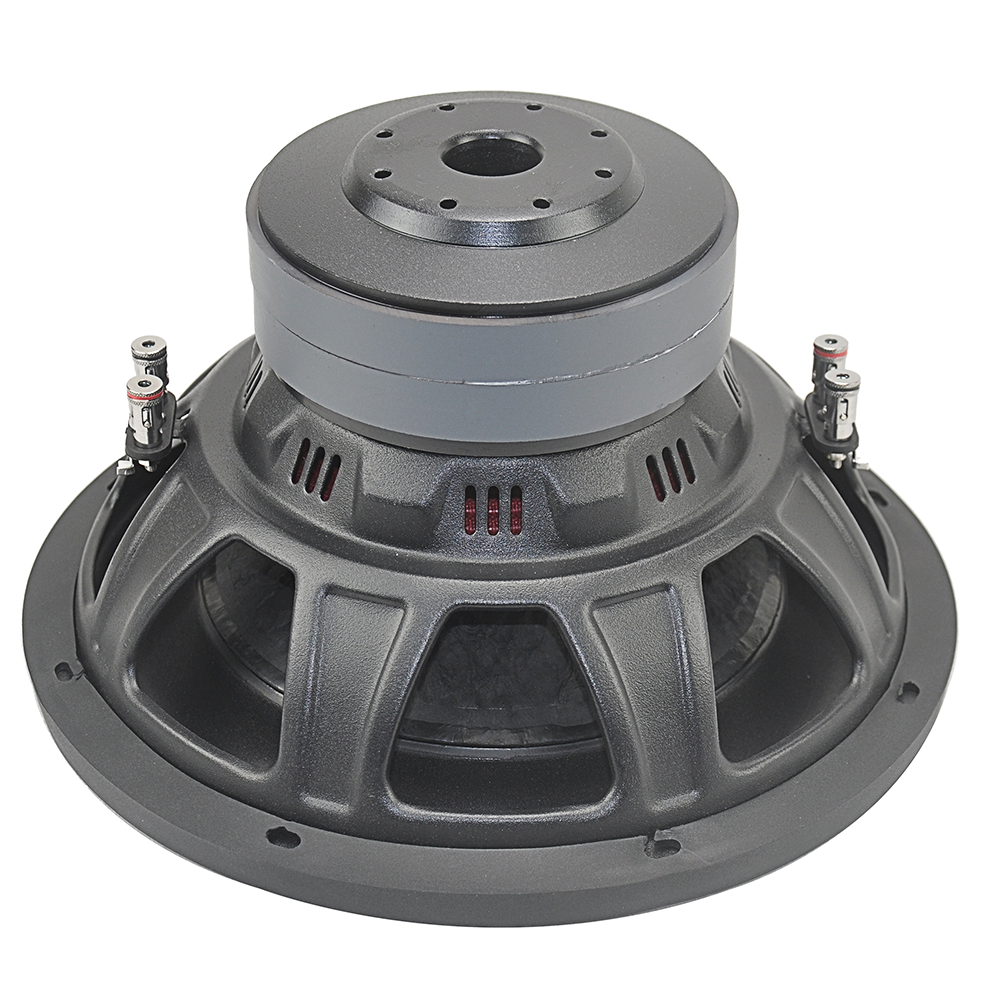

SE10 | 10" 1,200 Watt Max Power Car Subwoofer
General Specifications
| Overall Dimensions | 262 * 172 mm |
| RMS / MAX Power | 600W / 1200W |
| Sensitivity (1w/1m) | 82.8 dB |
| Frequency Response | 34 Hz - 300 Hz |
| Cone Material | Non-Pressed Paper Cone |
| Surround Material | High-Roll Foam Surround |
| Basket Type | Stamped Steel Basket |
Voice Coil & Motor Parameters
| Voice Coil Diameter | 61.1 mm (2.4") |
| Voice Coil Winding Height | 35 mm (Copper Coil) |
| Voice Coil Former | Black Aluminum |
| Nominal Impedance | Dual 4.0 Ohms (DC: Dual 3.2Ω) |
| Linear Excursion (Xmax) | 13.5 mm |
| Net Weight | 6.00 kg |
Thiele-Small (T-S) Parameters
Fs34 Hz
Qts0.52
Qes0.59
Qms4.75
Vas17.9 L
Mms149.3 g
Cms0.14 mm/N
BL9.33 N/A
Sd298.6 cm²

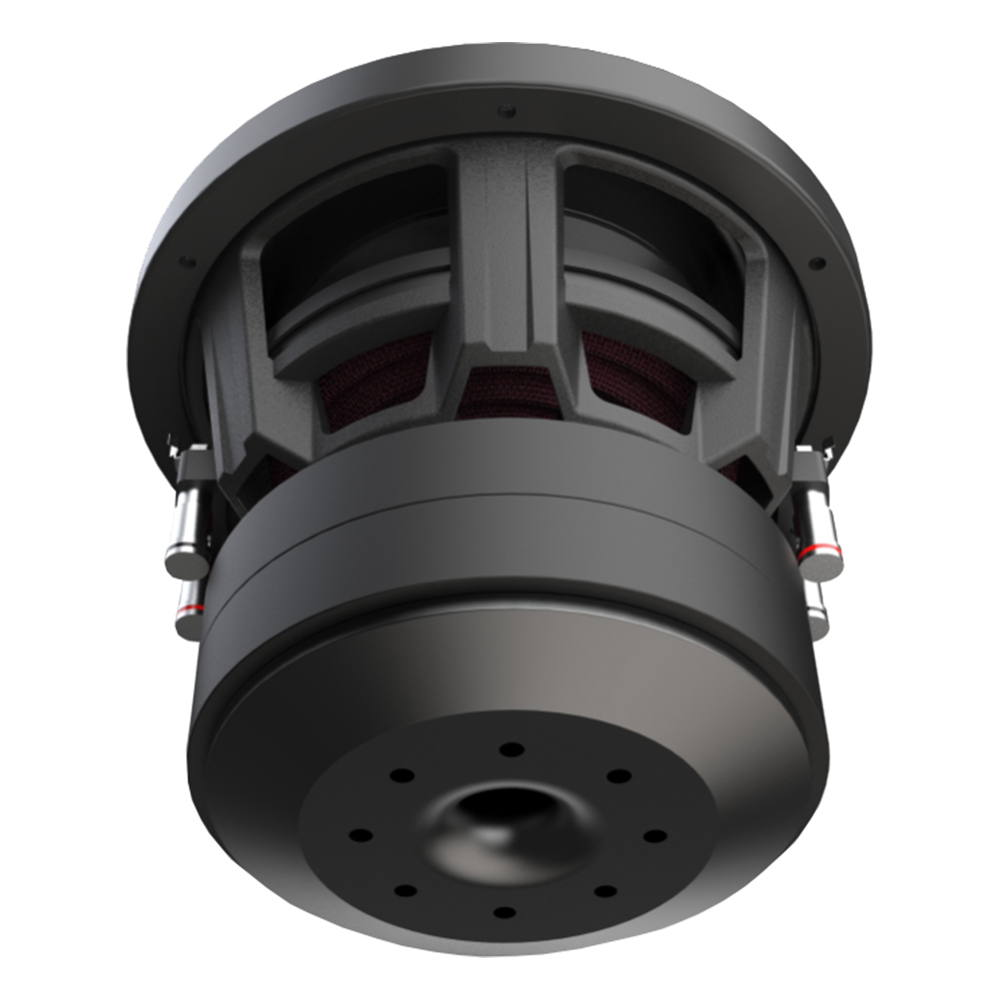

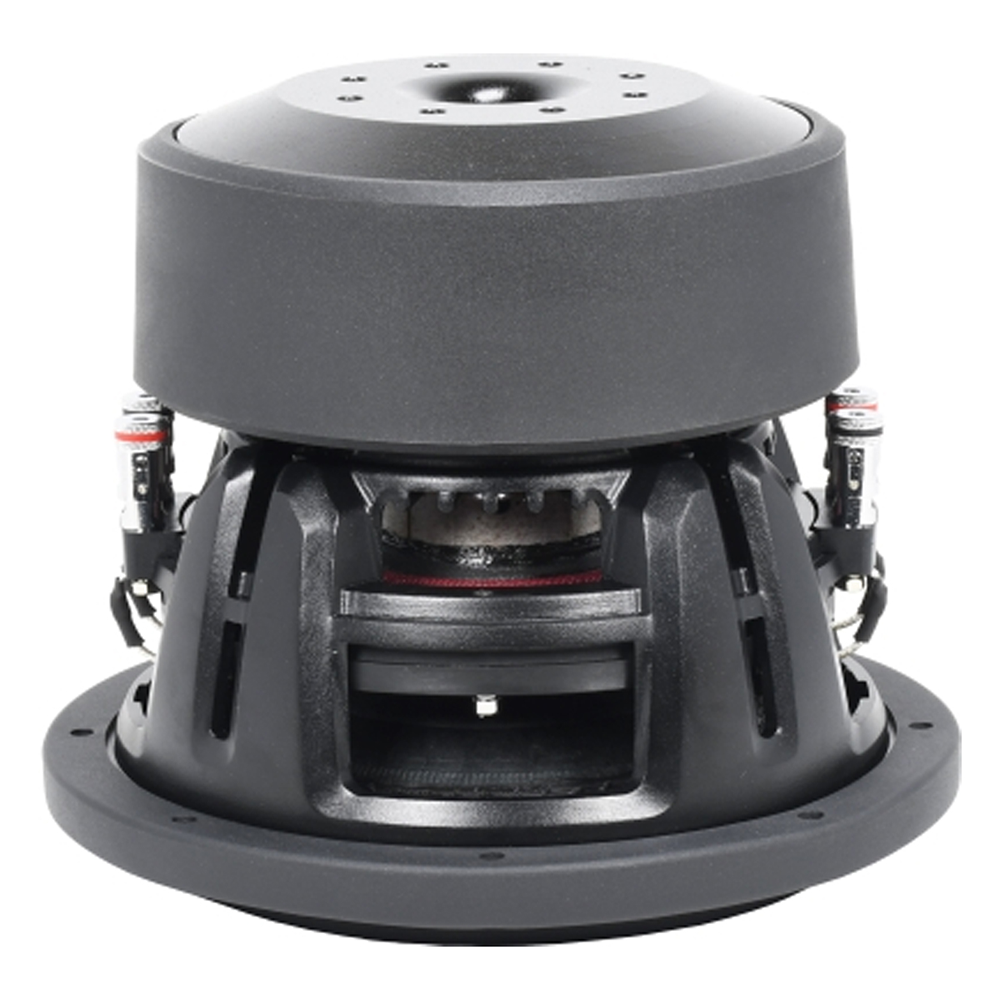

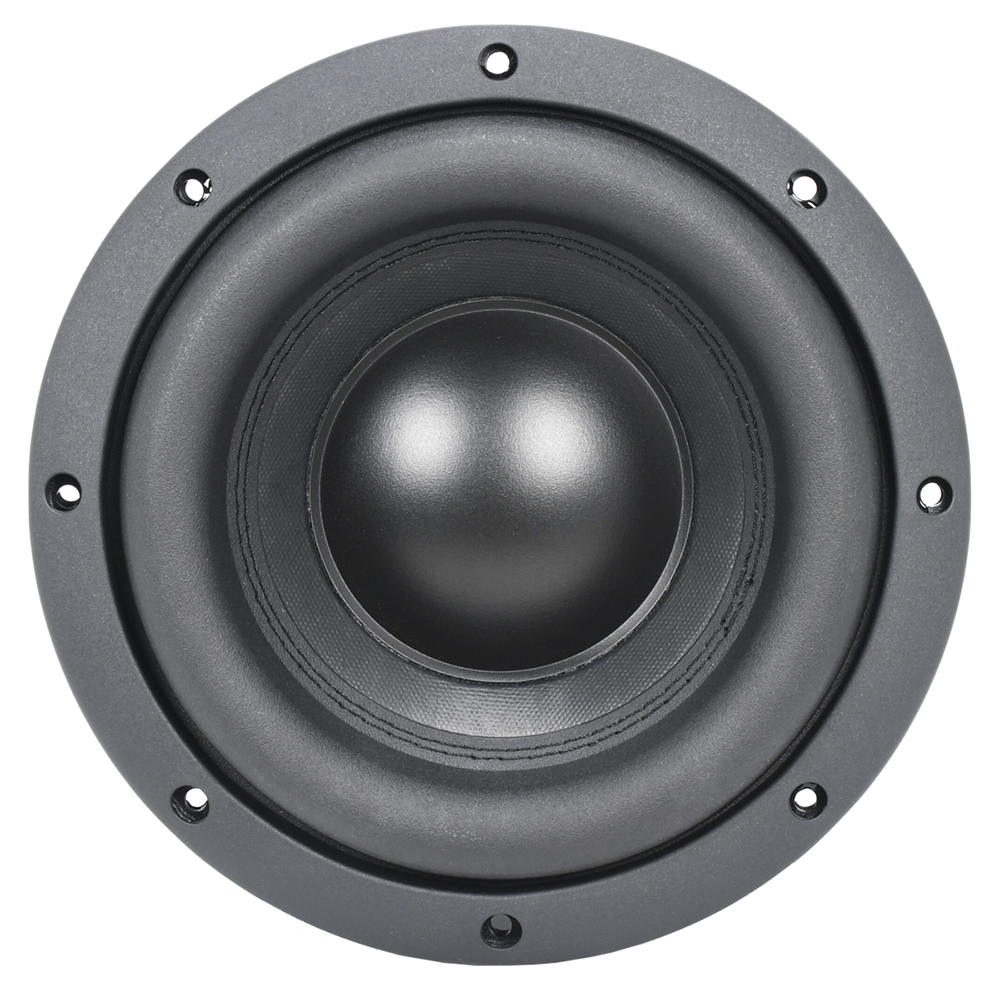

SG6V1 | 6" 500 Watt Max Power Car Subwoofer
General Specifications
| Overall Dimensions | 182 * 174 mm |
| RMS / MAX Power | 500W / 1000W |
| Sensitivity (1w/1m) | 80.6 dB |
| Frequency Response | 79 Hz - 300 Hz |
| Cone Material | Uncompressed Speckled Fiber Paper |
| Surround Material | Thermoformed Rubber Surround |
| Basket Material | Die-Cast Aluminum Basket |
| Magnet System | Ferrite (100.07 oz) |
Voice Coil & Motor Parameters
| Voice Coil Diameter | 50.8 mm (2.0") |
| Voice Coil Winding Height | 38 mm (4-Layer Pure Copper) |
| Voice Coil Wire Material | CCAW |
| Voice Coil Former | Black Aluminum |
| Nominal Impedance | Dual 2.0 Ohms (DC: Dual 1.4Ω) |
| Spider System | 5.3" Composite PC Damper |
| Linear Excursion (Xmax) | 13 mm |
| Net Weight | 7.00 kg |
Thiele-Small (T-S) Parameters
Fs79 Hz
Qts0.47
Qes0.63
Qms1.95
Vas9.3 L
Mms113.2 g
Cms0.03 mm/N
BL15.8 N/A
Sd136.8 cm²
