Amplifier Manufacturing Services: A DFM-to-Ramp Framework for Reliable, On-Time Launches

📌 Key Takeaways

Manufacturing delays destroy product momentum faster than any technical flaw ever could.

DFM Decisions Drive Everything: Upstream manufacturability choices during design review reduce downstream yield problems by orders of magnitude—lock tolerances, thermal paths, and test points before any pilot unit gets built.

First-Article Approval Needs Numbers: Replace subjective sign-offs with explicit metrics like yield percentages, ATE pass rates, and burn-in durations backed by documented evidence bundles that both parties can verify.

Smart ATE Prevents Expensive Surprises: Well-designed automated testing adds minutes per unit but eliminates DOA escapes and warranty claims that cost exponentially more than the test time investment.

MES Traceability Accelerates Root-Cause: Barcode-bound test data transforms field failures from broad production lot investigations into pinpoint component batch or process window analysis.

Pilot Runs Generate First-Article Evidence: Small-scale validation produces the yield baselines, repair frequencies, and documentation artifacts required for confident production scale-up decisions.

Systematic preparation transforms hopeful launches into predictable successes.

For audio brand decision-makers and private-label partners evaluating ODM manufacturing relationships, these frameworks provide the structured approach needed to de-risk new product introduction programs and hit launch dates consistently.

Deadlines slip quietly.

A bench supply hums at 24 V. The chamber door clicks shut for a burn-in cycle, and a stack of pilot-run units waits for barcode labels. You need a launch that leaves no room for guesswork—first-article approval buttoned up, test coverage defined, and a supplier who treats yield risk as a solvable engineering problem, not a surprise.

Amplifier Manufacturing Services turn qualified designs into repeatable production by following a DFM → NPI/pilot → ramp path. Lock manufacturability early, define first-article criteria, run QA/reliability gates, implement ATE for line coverage, and bind data to MES/traceability. This sequence reduces yield risk, prevents DOA escapes, and enables faster root-cause when issues occur.

What DFM → NPI → Ramp Looks Like for Amplifiers

Design for Manufacturability aligns schematics, PCB layout, thermal design, tolerances, and test-point strategy so the design can be built repeatably at target yield and cycle time. This upstream work materially reduces downstream yield risk.

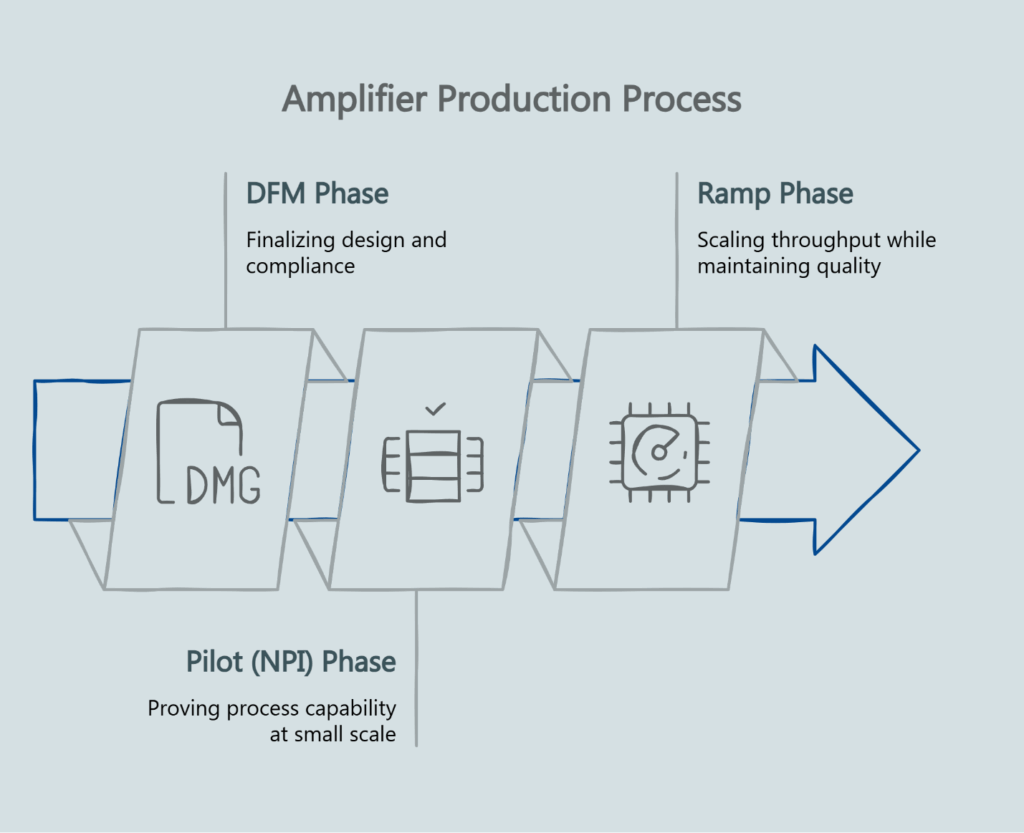

The three-phase framework operates like a production engine tuned for reliability and scale:

DFM Phase: Finalize tolerances, thermal design, PCB layout, and test-point strategy. Confirm compliance implications that affect layout and labeling—IEC 62368-1 safety requirements, FCC labeling considerations, and RoHS/REACH substance restrictions.

Pilot (NPI) Phase: Prove process capability at small scale. Collect first-article artifacts and establish baseline yield, rework, and escape rates through controlled production runs.

Ramp Phase: Scale throughput while maintaining QA gates, ATE coverage, and MES logging systems that were validated during pilot.

Early DFM choices reduce downstream yield risk. A disciplined pilot enables first-article approval with evidence. ATE and MES prevent expensive surprises by catching and tracing what slips through.

First-Article Approval: The Acceptance Criteria

First-article approval requires explicit metrics rather than subjective assessments. The acceptance matrix establishes clear pass/fail boundaries that both parties can verify before scaling production.

Zero-Click Acceptance Matrix

Criterion	Target/Range	Evidence Required
Pilot yield (units passed)	≥ [define] %	Pilot summary; yield report; rework log
ATE pass rate	≥ [define] %	Functional test report; Audio Precision logs
Burn-in/soak duration	[define] h @ [define] °C	Reliability report; chamber records
Rework rate	≤ [define] %	Repair tickets; failure codes
Escape rate (post-line faults)	≤ [define] ppm	FQC log; RMA pre-screen
Labeling & safety verification	Pass	Label master; IEC 62368-1 checklist
Change control (ECO/ECR)	Current & controlled	ECO/ECR log; revision table
Traceability sample set	Complete	Barcode/QR links; MES extract

Required Documentation Bundle:

• Controlled BoM with revision history
• Test reports covering DFM checks, reliability snapshots, and ATE summaries
• Label master with market-specific markings
• Change-control log documenting ECO/ECR modifications
• Process FMEA highlights identifying critical control points
• Traceability samples bound to barcodes/QR codes

Specific numeric thresholds vary by design, market, and risk posture. Use this matrix as a template with values set through engineering and QA sign-off.

QA & Reliability Gates that Protect Warranty Cost

The quality system operates through three checkpoints supported by ISO 9001:2015 quality management standards:

Incoming Quality Control (IQC) verifies critical components and subassemblies before they enter work-in-process inventory.

In-Process Quality Control (IPQC) catches drift at its source—monitoring solder quality, assembly torque, thermal interfaces, and calibration steps throughout production.

Final Quality Control (FQC) combines visual inspection with specification verification prior to pack-out.

Golden samples anchor judgments in reality. Engineers and operators compare line units to known-good references from approved first-article batches. When combined with KLIPPEL QC systems for acoustic verification, this approach maintains consistent performance within specified tolerances.

Reliability snapshots through temperature cycling, vibration testing, and power stress tests surface marginal designs before they become warranty claims. These accelerated life tests simulate real-world usage patterns and inform warranty policy decisions.

ATE & End-of-Line Testing: Coverage without Slowing Ramp

Well-designed automated test equipment adds minutes but prevents costly escapes. The net effect is lower warranty cost and more predictable ramp performance.

Coverage Strategy:

• Power-on sequencing and safety pre-checks ensure units meet IEC 62368-1 requirements
• Functional verification covers gain, THD+N measurement, and protection circuit validation
• Burn-in/soak testing identifies early failures through thermal and electrical stress
• Final visual inspection catches issues automated systems miss

Each test step generates data that feeds into MES systems through barcode tracking, creating complete test histories for rapid diagnosis of field issues.

The common objection—that ATE slows throughput—misses the broader economics. Minutes added during testing prevent hours of field service calls and warranty replacements. Net warranty savings typically offset test time investments within the first production quarter.

MES/Traceability: Faster Root-Cause & Lower Returns

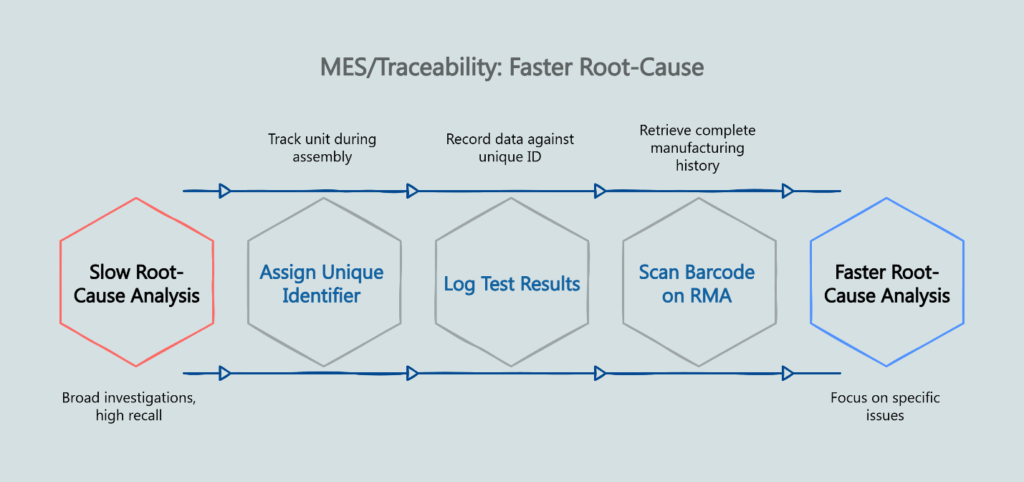

Manufacturing Execution Systems bind test data to individual units through barcode or QR code tracking. When field issues occur, this traceability accelerates root-cause analysis and limits recall scope.

The system works by assigning each amplifier a unique identifier during final assembly. As units progress through test stations, results are logged against this ID along with component lot numbers, test technician assignments, and environmental conditions.

When RMAs arrive, service teams scan unit barcodes to retrieve complete manufacturing histories. Instead of broad investigations affecting entire production lots, engineering can focus on specific process windows or component batches.

For smaller production runs, MES-lite approaches using barcode-bound spreadsheets provide 80% of the benefit at lower implementation cost. The key principle: create a traceable link between each unit and its manufacturing conditions.

Factory Tour Agenda: Scoring Your Supplier

Systematic assessment across five areas provides objective supplier qualification criteria:

People & Organization: Training matrices for critical stations, clear ECO/ECR ownership, and effective shift handoff practices.

Process Capabilities: FIFO controls in stores and WIP, line balance with clear work instructions, and visible DFM feedback loops between engineering and production.

Equipment & Infrastructure: Current fixture maintenance logs, calibrated tools with up-to-date certifications, and environmental controls for burn-in and assembly areas.

Quality Systems: Accessible golden samples with documentation, defined IQC sampling plans, and pilot dashboards showing yield, rework, and escape rates.

Compliance Readiness: Safety labeling mapped to IEC 62368-1 requirements, substance controls aligned with RoHS/REACH, and market approval planning for target regions.

Consider scheduling an in-person DFM & feasibility review followed by a guided tour to evaluate these capabilities firsthand.

Primary Actionable Asset: DFM Inputs Checklist

These amplifier-specific inputs materially affect yield and cycle time. Ensure each is defined before pilot runs:

• Schematics & PCB Layout: Clear test-points, proper creepage/clearance, optimized return paths for Class-D topologies
• Thermal Management: Heatsink interfaces, airflow requirements, derating strategies, and shutdown trigger points
• Component Strategy: Alternates availability, critical tolerances, and supply risk assessments
• Connectorization: Strain relief design, insertion forces, and error-proof mating strategies
• Labeling Requirements: Hazard markings, rating plates, and serial formats tied to regulatory requirements
• Test Coverage: ATE goals with audio precision sequence planning
• Serviceability: Access to likely fault points and fixture plans for post-repair testing

Pilot KPIs: Prove Capability Before You Scale

KPI	Baseline Result	Acceptance Note
Yield	[value] %	≥ [target] %
DOA (post-ship)	[value] ppm	≤ [target] ppm
Rework rate	[value] %	≤ [target] %
Escape rate	[value] ppm	≤ [target] ppm
ATE pass rate	[value] %	≥ [target] %
Burn-in pass rate	[value] %	≥ [target] %

Use pilot data to set realistic but firm ramp gates. KPI structure is broadly standard in manufacturing; actual thresholds are program-specific.

Objections, Answered

“ATE adds too much time.” Well-designed fixtures add minutes but prevent DOA escapes and enable faster debug. Warranty savings typically outweigh test time costs.

“MES is overkill for small batches.” Start with MES-lite—barcode-bound data captures approximately 80% of the value. Scale to full MES as volumes grow.

“First-article is enough—skip pilot.” Pilot runs establish stable baselines for yield and repair rates while producing the artifacts needed for first-article approval.

“Compliance can wait until later.” Safety and labeling decisions affect layout, creepage, and BoM selection. Lock these early per IEC 62368-1 and market requirements to avoid costly respins.

Frequently Asked Questions

What is DFM in amplifier manufacturing?

Design for Manufacturability aligns schematics, PCB layout, thermal design, tolerances, and test-point strategy so the design can be built repeatably at target yield and cycle time.

How is a pilot run different from first-article approval?

The pilot run validates process capability at small scale and produces the artifacts needed for first-article approval—yield percentages, burn-in outcomes, ATE pass rates, and documentation bundles.

Which tests should every amplifier pass on the line?

Safety pre-checks, functional ATE covering power-on, gain, THD+N, and protection behavior, plus burn-in/soak testing with barcode-bound logging for traceability.

What documents are required for first-article sign-off?

Controlled BoM with revisions, test reports, label master, change-control log, process FMEA highlights, and traceability samples linked to barcode systems.

How does MES improve traceability?

By binding each unit’s test steps and materials via barcode/QR tracking, MES enables faster RMA root-cause analysis and reduces containment scope when escapes occur.

Building Predictable Launch Success

The path forward is systematic: reduce yield risk during DFM, enable first-article with explicit criteria, prevent DOA with comprehensive ATE, and accelerate root-cause with MES traceability. This sequence transforms amplifier programs from hopeful launches into predictable successes.

Upstream DFM decisions prevent downstream surprises. Structured pilot runs generate the evidence needed for confident first-article approval. Quality gates and automated testing catch defects before they reach customers.

Ready to implement this framework? Schedule an in-person DFM & feasibility review to align design requirements with manufacturing capabilities.

For deeper context on implementation, explore our amplifier production capabilities and visit our YouTube channel for shop-floor demonstrations.
