Spec :
– 6”
– 100 Watts RMS
– 1” voice coil
– impedance: 6 ohms
– freq. response: 125Hz-10KHz
– Sensitivity: 92.2dB
Spec:
– 8”
– 150 Watts RMS
– 1.5” voice coil
– impedance：4 ohms
– freq. response: 94Hz-8KHz
– Sensitivity: 95dB
Spec :
– 6”
– 50 Watts RMS
– 1” voice coil
– impedance: 4/8 ohms
– freq. response: 120Hz-15KHz
– Sensitivity: 92.3dB
Spec :
– 8”
– 100 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 90Hz-12KHz
– Sensitivity: 93.5dB
Spec :
– 6”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 115Hz-10KHz
– Sensitivity: 94.2dB
Spec:
– 8”
– 200 Watts RMS
– 1.5” voice coil
– impedance：4/8 ohms
– freq. response: 100Hz-10KHz
– Sensitivity: 96.8dB

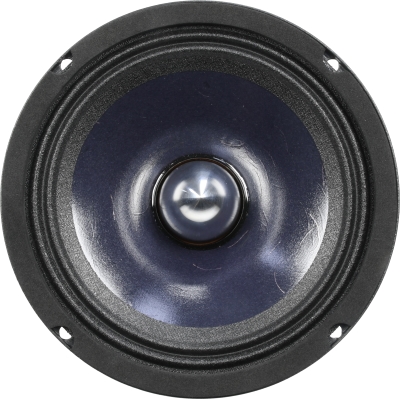

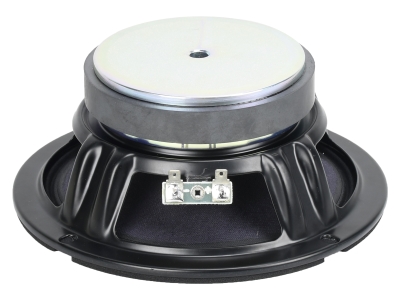

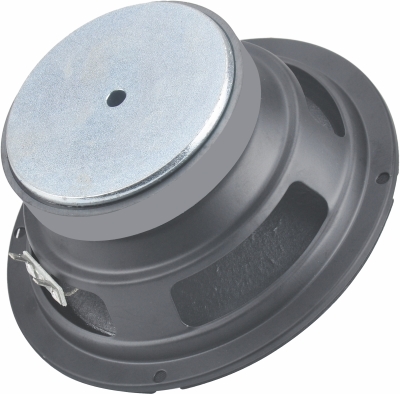

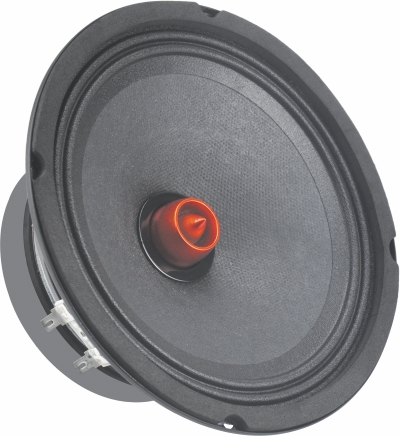

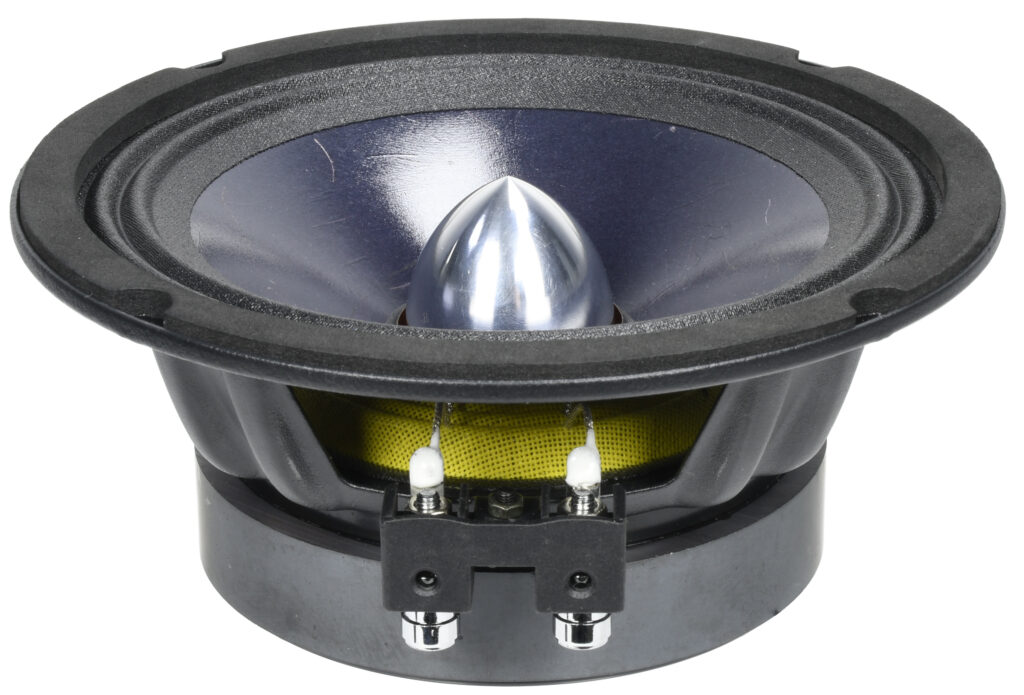

MC-G2/G6/G7 series midrange speaker, designed with FEM simulation motor structure, utilizes high Ferrite magnets to provide stronger sound impact, provide low distortion and highly motor efficiency.
The structure adopts a stamped steel basket, fiber non-pressed paper cone(MC-G2) /fiber compressed paper cone(MC-G6/G7) with CCAW voice coil, provides natural sound and high efficiency.
