Coaxial Speaker

Explore Production
View Catalog
4-inch coaxial car speaker with polypropylene cone, ferrite magnet, and copper dome tweeter — designed for high-performance mid and high-frequency sound.
CMC-4
Round coaxial car speaker with yellow accent and dome tweeter, front view.
CMC-525
CMC-65 6.5-inch coaxial car speaker with 40W RMS power, 87dB sensitivity, 60Hz–20kHz frequency response, steel basket, ferrite magnet, copper dome tweeter, and polypropylene cone.
CMC-65
4x6-inch coaxial car speaker with polypropylene cone and ferrite magnet.
CMC-46
CMC-68 6x8-inch coaxial car speaker with 45W RMS power, 88dB sensitivity, 50Hz–20kHz frequency response, ferrite magnet, copper dome tweeter, and polypropylene cone.
CMC-68
CMC-69 6x9-inch coaxial car speaker with 50W RMS power, 89dB sensitivity, 40Hz–20kHz frequency response, steel basket, ferrite magnet, dual copper dome tweeters, and polypropylene cone.
CMC-69
CMC-4

Spec :
– Dimensions(D*H): 102*46
– MAX(RMS) Power: 60(30) Watts
– Sensitivity: 86dB
– freq. response: 90Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”
– Copper dome, PP cone
– Net weight(kg): 0.52

CMC-525

Spec :
– Dimensions(D*H): 129*60
– MAX(RMS) Power: 75(35) Watts
– Sensitivity: 87dB
– freq. response: 70Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”
– Copper dome, PP cone
– Net weight(kg): 0.54

CMC-65

Spec :
– Dimensions(D*H): 165*70
– MAX(RMS) Power: 80(40) Watts
– Sensitivity: 87dB
– freq. response: 60Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”
– Copper dome, PP cone
– Net weight(kg): 0.76

CMC-46

Spec :
– Dimensions(D*H): 155*105*60
– MAX(RMS) Power: 60(30) Watts
– Sensitivity: 86dB
– freq. response: 80Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”
– Copper dome, PP cone
– Net weight(kg): 0.57

CMC-68

Spec :
– Dimensions(D*H): 192*138*68
– MAX(RMS) Power: 90(45) Watts
– Sensitivity: 88dB
– freq. response: 50Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”
– Copper dome, PP cone
– Net weight(kg): 0.78

CMC-69

Spec :
– Dimensions(D*H): 237*165*96
– MAX(RMS) Power: 100(50) Watts
– Sensitivity: 89dB
– freq. response: 40Hz-20kHz
– Steel basket, Ferrite magnet
– Coil diameter: 1”,  4 ohms
– Tweeter coil size: 0.5”+0.75”
– Copper dome, PP cone
– Net weight(kg): 1.33

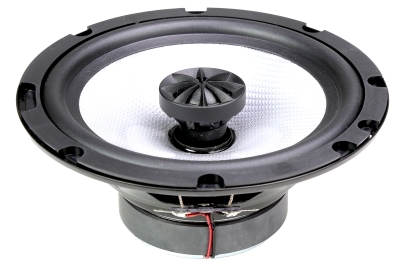

CMC65G1 6.5-inch coaxial car speaker with 50W RMS, 1-inch woofer voice coil, 0.75-inch tweeter, 60Hz–20kHz frequency response, and 88.6dB sensitivity.

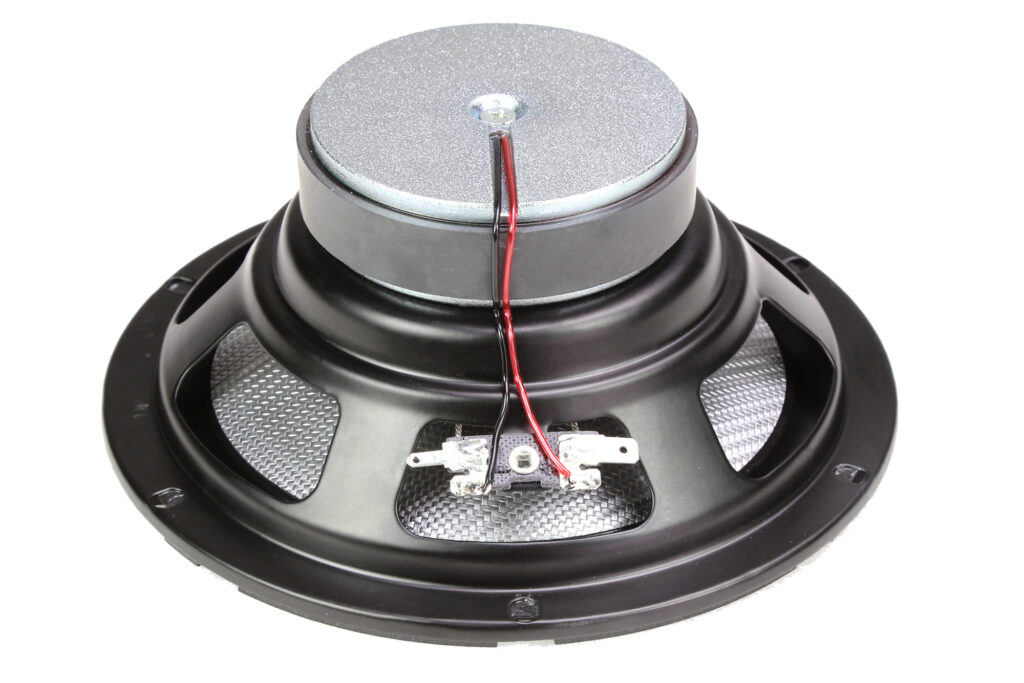

Rear view of CMC65G1 coaxial speaker showing ferrite magnet and sturdy basket design for durability and powerful sound.
CMC65G1

Spec :
– 50 Watts RMS
– Woofer: 1” voice coil, 4 ohms
– Tweeter: 0.75” voice coil, 4 ohms
– freq. response: 60Hz-20KHz
– Sensitivity: 88.6dB

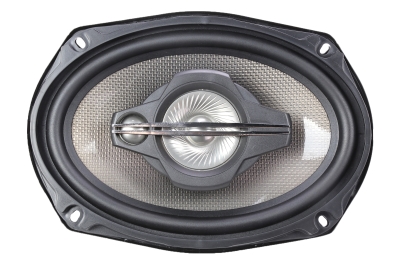

CMC69G2 6x9-inch coaxial car speaker with 60W RMS power, 1” woofer coil, 0.75” tweeter coil, 40Hz–20kHz frequency response, and 89.8dB sensitivity.

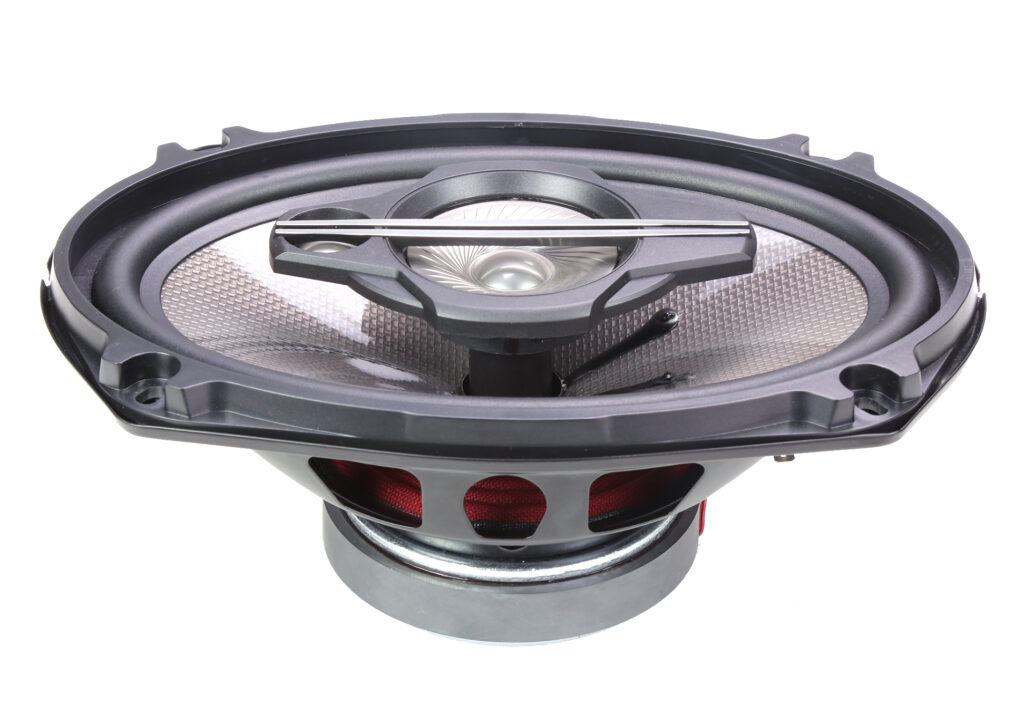

Angled view of CMC69G2 coaxial speaker featuring 60W RMS, 1” woofer voice coil, 0.75” tweeter coil, wide 40Hz–20kHz range, and 89.8dB sensitivity.
CMC69G2

Spec :
– 60 Watts RMS
– Woofer: 1” voice coil, 4 ohms
– Tweeter: 0.75” voice coil, 5 ohms
– freq. response: 40Hz-20KHz
– Sensitivity: 89.8dB

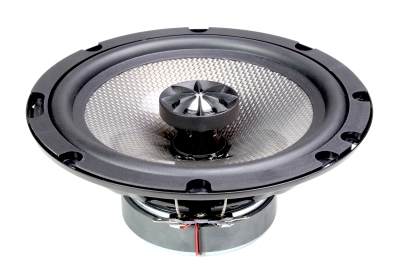

CMC65G2 6.5-inch coaxial car speaker with 50W RMS, 1” woofer voice coil, 0.75” tweeter coil, and 88.6dB sensitivity for powerful sound performance.

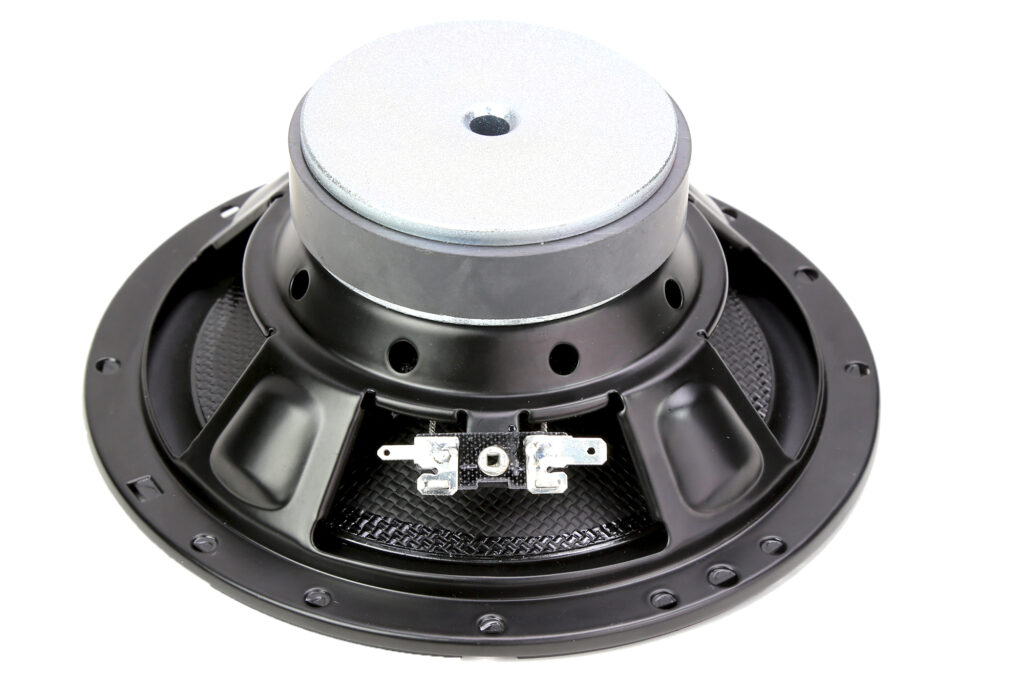

Rear view of CMC65G2 coaxial speaker showing durable steel basket, magnet assembly, and wiring terminals for reliable audio connections.
CMC65G2

Spec :
– 50 Watts RMS
– Woofer: 1” voice coil, 4 ohms
– Tweeter: 0.75” voice coil, 4 ohms
– freq. response: 60Hz-20KHz
– Sensitivity: 88.6dB

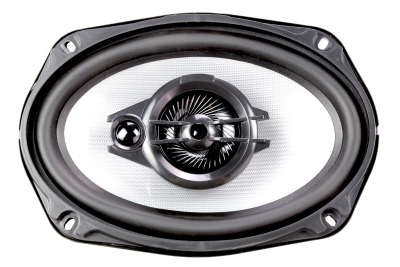

CMC69G1 6x9-inch coaxial car speaker with 60W RMS power, 1” woofer voice coil, 0.75” tweeter, 40Hz–20kHz frequency response, and 89.8dB sensitivity – front view.

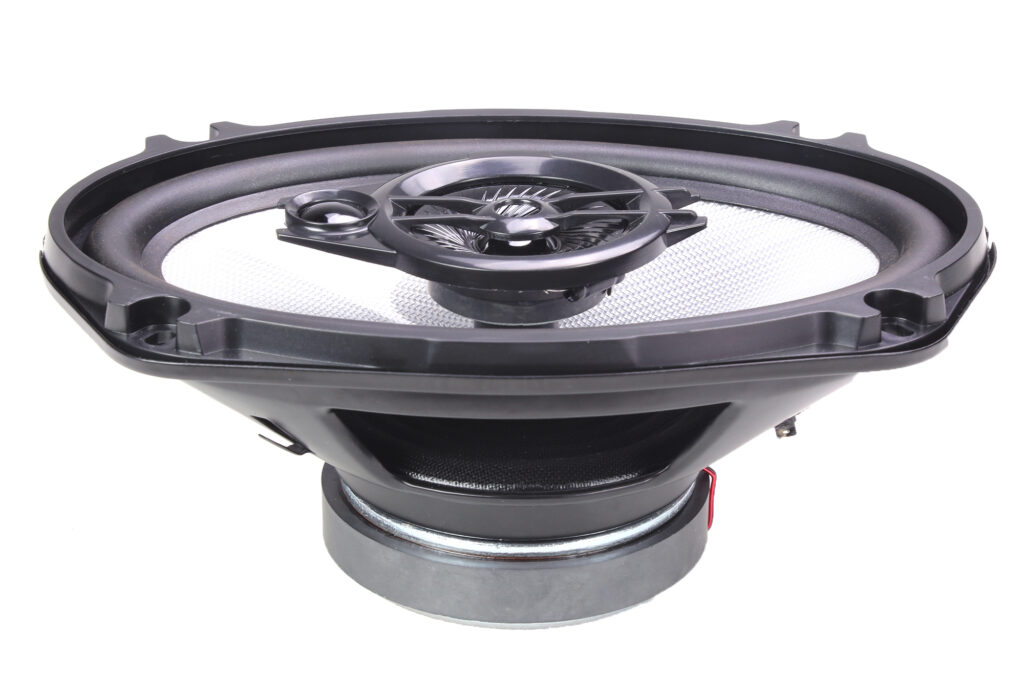

Angled view of CMC69G1 6x9-inch coaxial car speaker featuring 60W RMS, 1” woofer voice coil, 0.75” tweeter, wide 40Hz–20kHz frequency response, and 89.8dB sensitivity.
CMC69G1

Spec :
– 60 Watts RMS
– Woofer: 1” voice coil, 4 ohms
– Tweeter: 0.75” voice coil, 4 ohms
– freq. response: 40Hz-20KHz
– Sensitivity: 89.8dB

CMC4G3 4-inch coaxial car speaker with 30W RMS power, 70Hz–20kHz frequency response, 86.2dB sensitivity, 1” woofer voice coil, and 0.5” PEI dome tweeter – front view.
Angled view of CMC4G3 4-inch coaxial car speaker featuring 30W RMS, 1” woofer voice coil, 0.5” PEI dome tweeter, 4 ohms impedance, and wide 70Hz–20kHz frequency response.
CMC4G3

Spec :
– 30 Watts RMS
– freq. response: 70Hz-20KHz
– Sensitivity: 86.2dB
– WF: 1” voice coil, 4 ohms
– TW: 0.5” PEI dome

CMC5G3 5-inch coaxial car speaker with 35W RMS power, 1-inch woofer voice coil, 0.5-inch PEI dome tweeter, 87.6dB sensitivity, and 63Hz–20kHz frequency response.
Angled view of CMC5G3 5-inch coaxial speaker featuring 35W RMS, 1-inch woofer coil, 0.5-inch PEI dome tweeter, 4-ohm impedance, delivering clear sound from 63Hz to 20kHz.
CMC5G3

Spec :
– 35 Watts RMS
– freq. response: 63Hz-20KHz
– Sensitivity: 87.6dB
– WF: 1” voice coil, 4 ohms
– TW: 0.5” PEI dome

CMC6G3 6.5-inch coaxial car speaker with 40W RMS power, 63Hz–20kHz frequency response, 87.6dB sensitivity, 1-inch woofer voice coil, and 0.5-inch PEI dome tweeter.
Rear view of CMC6G3 coaxial car speaker showing magnet, wiring, and durable steel basket design.
CMC6G3

Spec :
– 40 Watts RMS
– freq. response: 63Hz-20KHz
– Sensitivity: 87.6dB
– WF: 1” voice coil, 4 ohms
– TW: 0.5” PEI dome

CMC69G3 6x9-inch coaxial car speaker with 60W RMS, 3-way design featuring 1-inch woofer voice coil, 0.75-inch midrange, and 0.5-inch PEI dome tweeter for clear highs and deep bass.
Side view of CMC69G3 6x9-inch coaxial speaker, 60W RMS power, 46Hz–20kHz frequency response, 89.8dB sensitivity, durable steel basket, and optimized design for powerful in-car audio.
CMC69G3

Spec :
– 60 Watts RMS
– freq. response: 46Hz-20KHz
– Sensitivity: 89.8dB
– WF: 1” voice coil, 4 ohms
– MID: 0.75” voice coil , 4 ohms
– TW: 0.5” PEI dome

CME-4 4-inch coaxial car speaker with 60W max power, 30W RMS, 1-inch voice coil, 0.8-inch tweeter, 4 ohm impedance, 90Hz–20kHz frequency response, and 86dB sensitivity
CME-4

Spec :
– MAX(RMS) Power: 60(30) Watts
– 1” coil diameter
– Tweeter coil size: 0.8”
– impedance: 4 ohms
– freq. response: 90Hz-20kHz
– Sensitivity: 86dB

CME-525 5.25-inch coaxial car speaker with 75W max power, 35W RMS, 1-inch voice coil, 0.8-inch tweeter, 4 ohm impedance, 70Hz–20kHz frequency response, and 87dB sensitivity.
CME-525

Spec :
– MAX(RMS) Power: 75(35) Watts
– 1”coil diameter
– Tweeter coil size: 0.8”
– impedance:4 ohms
– freq. response: 70Hz-20kHz
– Sensitivity: 87dB

CME-65 6.5-inch coaxial car speaker with 80W max power, 40W RMS, 1-inch voice coil, 0.8-inch tweeter, 4 ohm impedance, 70Hz–20kHz frequency response, 89dB sensitivity.
CME-65

Spec :
– MAX(RMS) Power: 80(40) Watts
– 1”coil diameter
– Tweeter coil size: 0.8”
– impedance: 4 ohms
– freq. response: 70Hz-20kHz
– Sensitivity: 89dB

CME-69 6x9-inch coaxial car speaker with 100W max power, 40W RMS, 1-inch voice coil, 0.8-inch tweeter, 4 ohm impedance, 56Hz–20kHz frequency response, 88dB sensitivity.
CME-69

Spec :
– MAX(RMS) Power: 100(40) Watts
– 1”coil diameter
– Tweeter coil size: 0.8”
– impedance: 4 ohms
– freq. response: 56Hz-20kHz
– Sensitivity: 88dB

CMG4 4-inch coaxial car speaker with 35W RMS power, 80Hz–20kHz frequency response, 86dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG4
CMG525 5.25-inch coaxial car speaker with 40W RMS, 80Hz–20kHz frequency response, 86dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG525
CMG65 6.5-inch coaxial car speaker with 50W RMS, 58Hz–20kHz frequency response, 89.3dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG65
CMG4

Spec :
– 4”, 35 Watts RMS
– freq. response: 80Hz-20kHz
– Sensitivity: 86dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG525

Spec :
– 5.25”, 40 Watts RMS
– freq. response: 80Hz-20kHz
– Sensitivity: 86dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG65

Spec :
– 6.5”, 50 Watts RMS
– freq. response: 58Hz-20kHz
– Sensitivity: 89.3dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG46 4x6-inch coaxial car speaker with 35W RMS power, 120Hz–20kHz frequency response, 87dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG46
CMG68 6x8-inch coaxial car speaker with 55W RMS, 50Hz–20kHz frequency response, 89dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG68
CMG69 6x9-inch coaxial car speaker with 60W RMS, 48Hz–20kHz frequency response, 91dB sensitivity, 1.25-inch voice coil, and 25mm silk dome tweeter.
CMG69
CMG46

Spec :
– 4*6”, 35 Watts RMS
– freq. response: 120Hz-20kHz
– Sensitivity: 87dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG68

Spec :
– 6*8”, 55 Watts RMS
– freq. response: 50Hz-20kHz
– Sensitivity: 89dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG69

Spec :
– 6*9”, 60 Watts RMS
– freq. response: 48Hz-20kHz
– Sensitivity: 91dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMG65X 6.5-inch coaxial car speaker with 50W RMS power, 64Hz–30kHz frequency response, 88.1dB sensitivity, 1.25” woofer voice coil, and 25mm silk dome tweeter.
Rear view of CMG65X 6.5-inch coaxial car speaker showing sturdy frame, magnet, and wiring terminals for durable installation.
Black rectangular crossover/module for CMG65X coaxial car speaker with bundled red-and-black wires and gold-plated connector plugs.
CMG65X

Spec :
– 6.5”, 50 Watts RMS
– freq. response: 64Hz-30kHz
– Sensitivity: 88.1dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

Front angled view of CMG69X 6x9-inch coaxial car speaker – 60W RMS, 43Hz–20kHz response, 90.4dB sensitivity, 1.25” voice coil, and 25mm silk dome tweeter for balanced sound.
Rear view of CMG69X 6x9-inch coaxial car speaker showing magnet and sturdy frame design, built for 60W RMS power handling and reliable performance.
CMG69X

Spec :
– 6*9”, 60 Watts RMS
– freq. response: 43Hz-20kHz
– Sensitivity: 90.4dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMP6P 6-inch coaxial car speaker with carbon fiber cone, 50W RMS power, 1.25” voice coil, and 25mm silk dome tweeter for high sensitivity and wide frequency response.
Rear view of CMP6P 6-inch coaxial car speaker showing durable magnet structure, 50W RMS rating, 4-ohm impedance, and heat-dissipating design for reliable audio performance
CMP6P

Spec :
– 6”, 50 Watts RMS
– freq. response: 48Hz-20kHz
– Sensitivity: 89dB
– WF:  1.25” voice coil, 4 ohms
– TW: 25mm silk dome

CMP69P 6x9-inch coaxial car speaker with 100W RMS power, 1.4” voice coil, and 28mm silk dome tweeter for deep bass and clear highs.
Rear view of CMP69P 6x9-inch coaxial speaker showcasing durable magnet and frame construction for powerful audio performance.
CMP69P

Spec :
– 6*9”, 100 Watts RMS
– freq. response: 40Hz-20kHz
– Sensitivity: 91dB
– WF:  1.4” voice coil, 4 ohms
– TW: 28mm silk dome

CMG35G2 3.5-inch coaxial car speaker with 30W RMS power, 1” ferrite woofer voice coil, 0.8” CCAW neo tweeter, and 85.6dB sensitivity for clear midrange and crisp highs
CMG4G2 4-inch coaxial car speaker, 35W RMS, 4-ohm impedance, 1.25” ferrite woofer coil, 1” CCAW neo tweeter, 86.9dB sensitivity, and 95Hz–20kHz frequency response.
CMG35G2/4G2/525G2/6G2
CMG6G2

Spec :  6.5”
– 50 Watts RMS, 4 ohms
– freq. response: 55Hz-20kHz
– Sensitivity: 87.8dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet

CMG35G2

Spec :  3.5”
– 30 Watts RMS, 4 ohms
– freq. response: 115Hz-20kHz
– Sensitivity: 85.6dB
– WF: 1” voice coil, FERRITE magnet
– TW: 0.8” CCAW, NEO magnet

CMG4G2

Spec :  4”
– 35 Watts RMS, 4 ohms
– freq. response: 95Hz-20kHz
– Sensitivity: 86.9dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet

CMG525G2

Spec : 5.25”
– 40 Watts RMS, 4 ohms
– freq. response: 85Hz-20kHz
– Sensitivity: 87.5dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet

CMG46G2 4x6-inch coaxial car speaker with 35W RMS power, 1.25” ferrite woofer coil, 1” CCAW neo tweeter, 87.6dB sensitivity, and 90Hz–20kHz frequency response.
CMG68G2 6x8-inch coaxial car speaker with yellow cone, 60W RMS, 4-ohm impedance, 1.25” ferrite woofer coil, 1” CCAW neo tweeter, 88.1dB sensitivity, and 50Hz–20kHz frequency response.
CMG69G2 6x9-inch coaxial car speaker with yellow cone, 100W RMS, 4-ohm impedance, 1.25” ferrite woofer coil, 1” CCAW neo tweeter, 88.4dB sensitivity, and 45Hz–20kHz frequency response.
CMG46G2/68G2/69G2
CMG46G2

Spec :  4*6”
– 35 Watts RMS, 4 ohms
– freq. response: 90Hz-20kHz
– Sensitivity: 87.6dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet

CMG68G2

Spec :  6*8”
– 60 Watts RMS, 4 ohms
– freq. response: 50Hz-20kHz
– Sensitivity: 88.1dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet

CMG69G2

Spec : 6*9”
– 100 Watts RMS, 4 ohms
– freq. response: 45Hz-20kHz
– Sensitivity: 88.4dB
– WF: 1.25” voice coil, FERRITE magnet
– TW: 1” CCAW, NEO magnet
