Slim Subwoofer

Explore Production
View Catalog
China Future Sound SE-F slim car subwoofer (front view) — 8/10/12-inch, 250–300W RMS, 2” D2/D4 voice coil, 39–300Hz response, woven fiberglass cone.

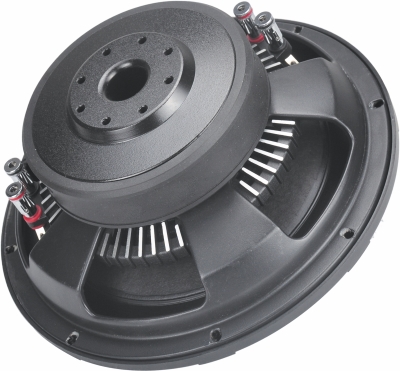

China Future Sound SE-F slim car subwoofer (rear view) — vented pressed-steel basket with cooling fins and spring terminals; 2” D2/D4 voice coil, 250–300W RMS.
SE8F/SE10F/SE12F
SE8F

Spec :
– 8” Subwoofer
– 250 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 45Hz-300Hz
– Sensitivity: 83.5dB

SE10F

Spec:
– 10” Subwoofer
– 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 45Hz-300Hz
– Sensitivity: 84.5dB

SE12F

Spec:
– 12” Subwoofer
– 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 39Hz-300Hz
– Sensitivity: 85.7dB

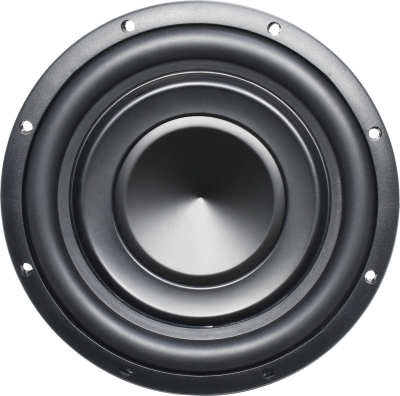

China Future Sound SG-FG1 subwoofer (front view) — 8/10/12-inch, 250–500W RMS, 2–2.4” D2/D4 voice coil, 38–300Hz response, metal dust cap with rubber surround.

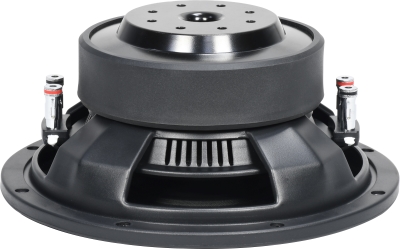

China Future Sound SG-FG1 subwoofer (rear view) — vented motor and basket, large ferrite magnet, spring terminals; 2–2.4” D2/D4 voice coil, 250–500W RMS.
SG8FG1/SG10FG1/SG12FG1
SG8FG1

Spec :
– 8”
– 250 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 45Hz-300Hz
– Sensitivity: 83.6dB

SG10FG1

Spec :
– 10”
– 500 Watts RMS
– 2.4” voice coil, D2/D4 ohms
– freq. response: 42Hz-300Hz
– Sensitivity: 84.1dB

SG12FG1

Spec:
– 12”
– 500 Watts RMS
– 2.4” voice coil, D2/D4 ohms
– freq. response: 38Hz-300Hz
– Sensitivity: 86.5dB

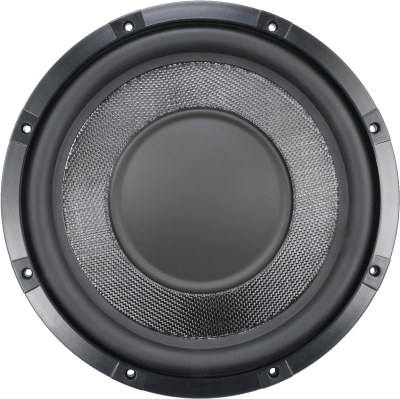

China Future Sound SE-FG1 slim subwoofer (front view) — fiberglass cone with NBR rubber surround, pressed-steel basket; 10/12-inch, 300W RMS, 2” D2/D4 voice coil.

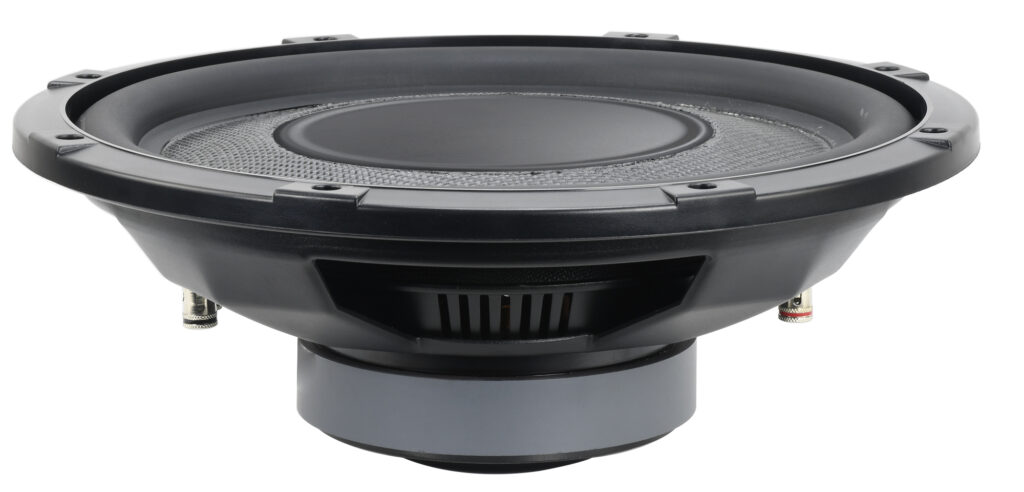

China Future Sound SE-FG1 slim subwoofer (side profile) — shallow-mount design with vented basket and motor, fiberglass cone, spring speaker terminals.

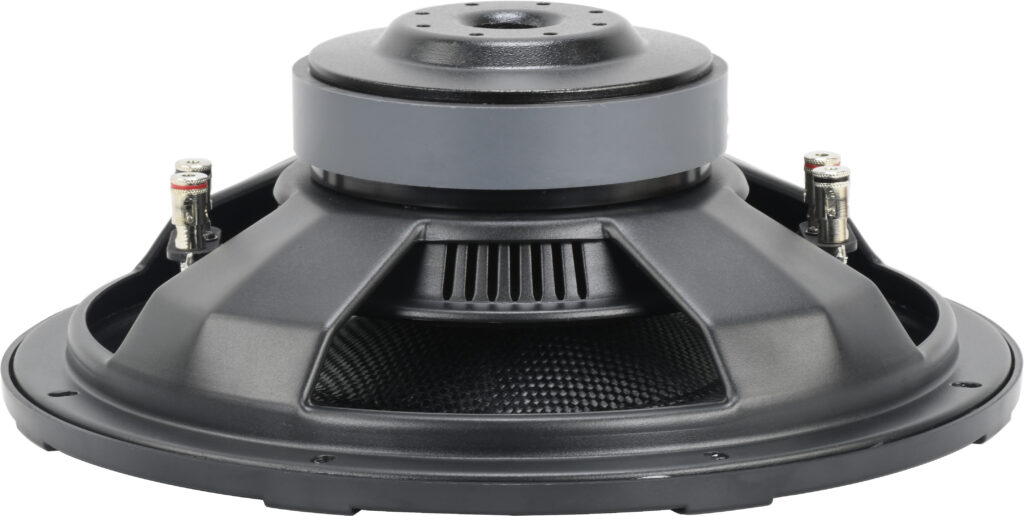

China Future Sound SE-FG1 slim subwoofer (rear view) — high-efficiency magnet motor with cooling vents and spring terminals; 2” high X-max coil, ±12 mm excursion.
SE10FG1/SE12FG1

SE-FG1/2 sreies are slim subs built with extremely high efficiency magnet motor, Pressed steel basket with vented hole, fiberglass cone.

The movement with multilayer spiders and NBR rubber surround, make the sound cleaner and stronger. Standard 2.0” black aluminum 4 layer copper high X-max coils push the excursion capabilities to±12mm.

SE10FG1

Spec:
– 10”, 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 46Hz-300Hz
– Sensitivity: 85.1dB

SE12FG1

Spec :
– 12”, 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 44Hz-300Hz
– Sensitivity: 86.8dB

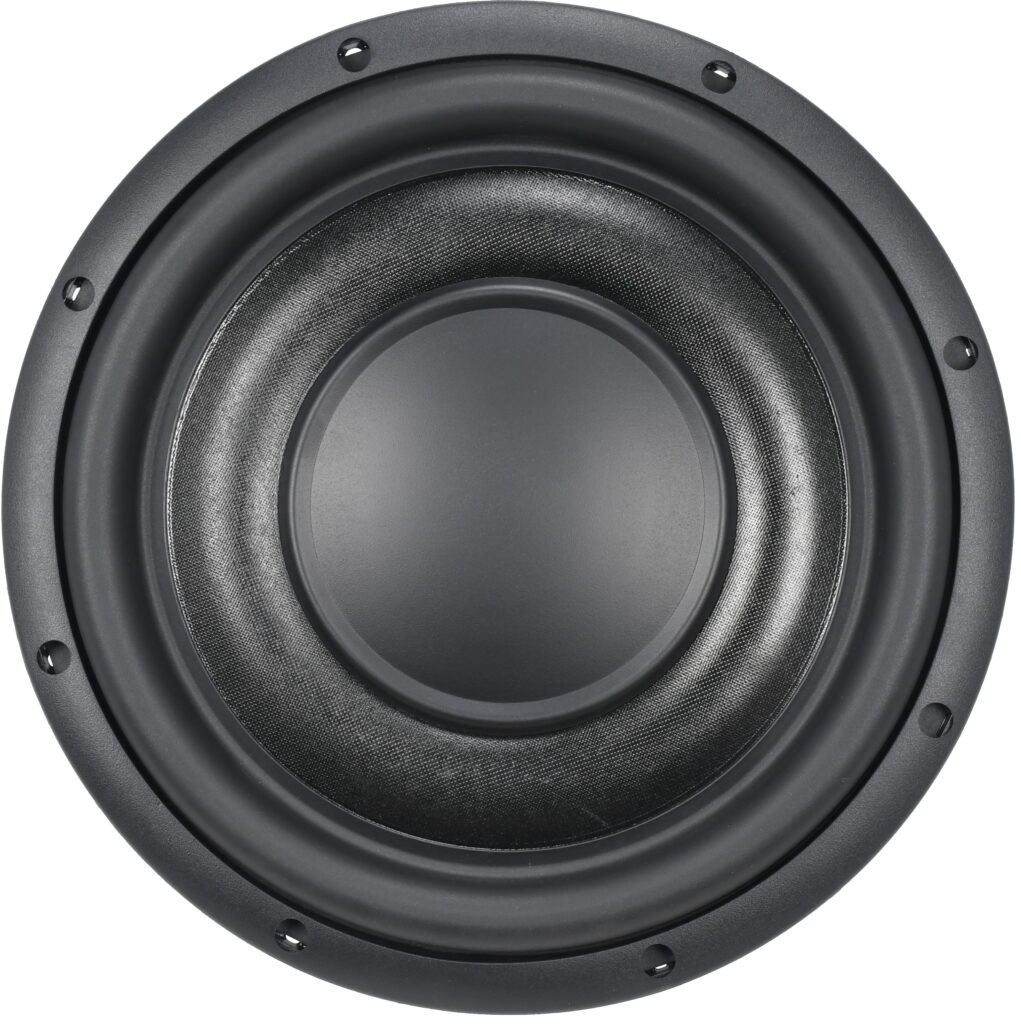

China Future Sound SE-FG2 slim subwoofer front view — 8/10/12-inch, 200–300W RMS, 2-inch D2 or D4 voice coil, 32–300Hz response, solid dust cap and rubber surround.

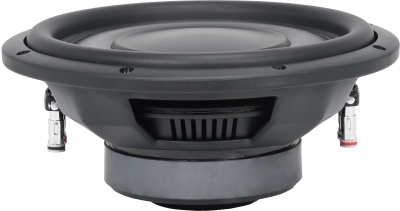

China Future Sound SE-FG2 slim subwoofer side profile — shallow-mount pressed-steel basket, vented motor, spring speaker terminals.

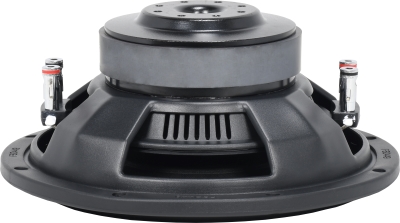

China Future Sound SE-FG2 slim subwoofer rear view — cooling vents, large ferrite magnet, spring terminals, 2-inch D2 or D4 coil, 200–300W RMS.
SE8FG2/SE10FG2/SE12FG2
SE8FG2

Spec :
– 8”, 200 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 45Hz-300Hz
– Sensitivity: 84.8dB

SE10FG2

Spec:
– 10”, 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 36Hz-300Hz
– Sensitivity: 86.5dB

SE12FG2

Spec:
– 12”, 300 Watts RMS
– 2” voice coil, D2/D4 ohms
– freq. response: 32Hz-300Hz
– Sensitivity: 87.9dB
