CA Series PA Power Amplifiers

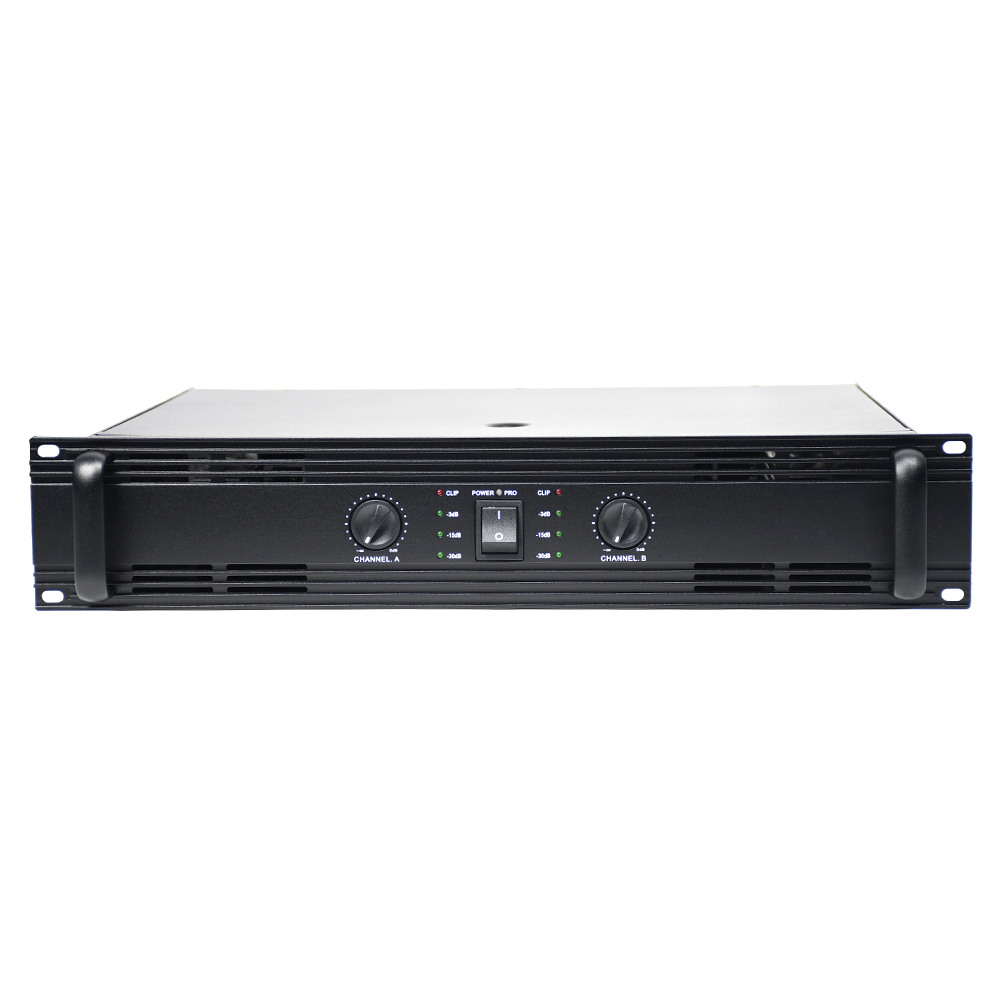

CA300 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 300W
Output Power @ 1kHz 4Ω2 × 450W
Bridge Power 8Ω700W
Weight17 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
CA400 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 400W
Output Power @ 1kHz 4Ω2 × 600W
Output Power @ 1kHz 2Ω2 × 800W
Bridge Power 8Ω / 4Ω1000W / 1200W
Weight18 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
CA600 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 600W
Output Power @ 1kHz 4Ω2 × 900W
Output Power @ 1kHz 2Ω2 × 1100W
Bridge Power 8Ω / 4Ω1800W / 2000W
Weight22 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
CA800 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 800W
Output Power @ 1kHz 4Ω2 × 1200W
Output Power @ 1kHz 2Ω2 × 1400W
Bridge Power 8Ω / 4Ω2000W / 2400W
Weight23 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
CA1000 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 1000W
Output Power @ 1kHz 4Ω2 × 1500W
Output Power @ 1kHz 2Ω2 × 1900W
Bridge Power 8Ω / 4Ω3000W / 3800W
Weight36 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
CA1200 Power Amplifier
Class A/B Professional PA Power Amplifier
Output Power @ 1kHz 8Ω2 × 1200W
Output Power @ 1kHz 4Ω2 × 1800W
Output Power @ 1kHz 2Ω2 × 2200W
Bridge Power 8Ω / 4Ω3600W / 4400W
Weight37 kg
Operation ClassClass A/B
Frequency Range+/-0.1dB, 20Hz ~ 20kHz
THD≤ 0.01% Rated Power @ 8Ω 1kHz
LPF / HPF20Hz-180Hz / 130Hz-20kHz
ProtectionDC, Temp, Short Circuit, Over Current
ConnectorsInput: XLR / Output: Speakon, 6.3mm Jack, Binding Post
Dimension (W×H×D)483 × 88 × 490 mm
Power Supply220V 50/60Hz
