MD Series Monoblock Amplifiers

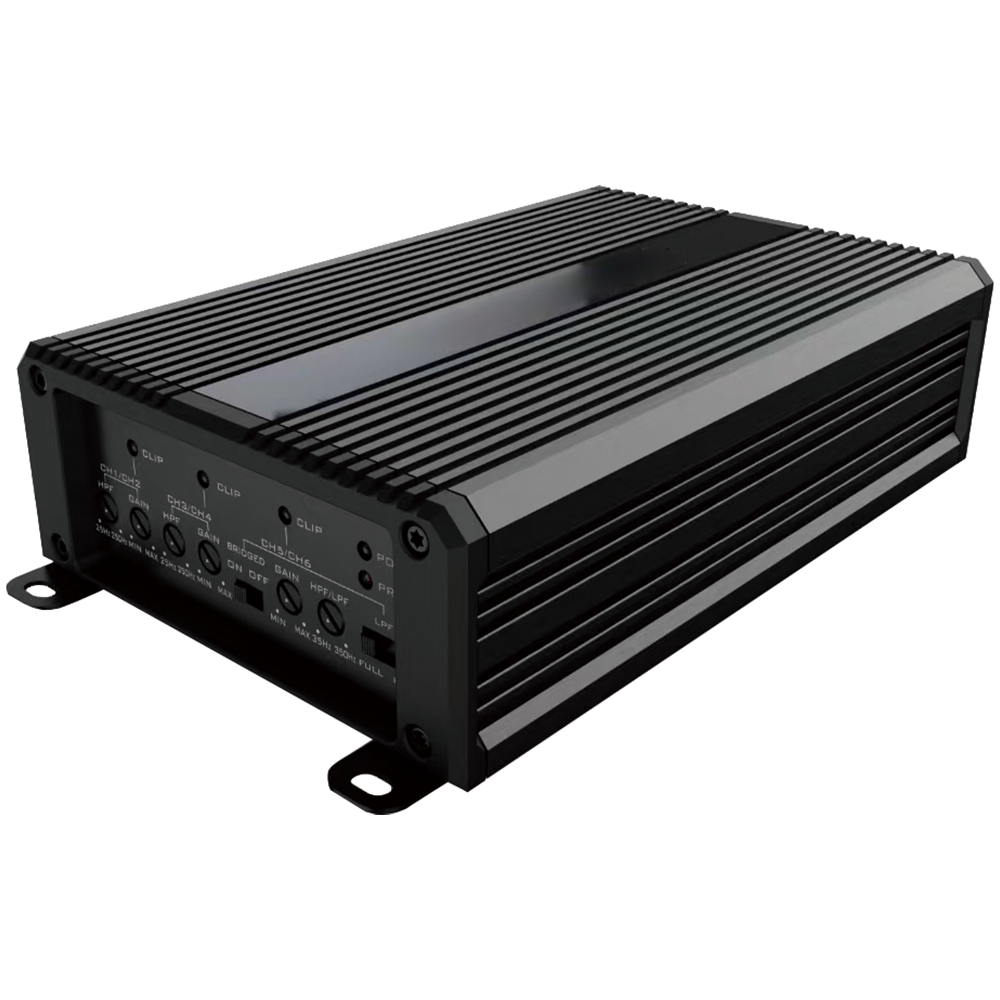

MD750.1 Monoblock
Ultra Compact Micro Class D Subwoofer Amplifier
Dimensions (L×W×H)274 × 112 × 46 mm
Power @ 4Ω265W × 1
Power @ 2Ω423W × 1
Power @ 1Ω640W × 1
Frequency Response @ 4Ω10Hz ~ 20kHz
Signal to Noise Ratio90dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4.0kHz
Working Voltage9V ~ 16V
Bass Boost0 ~ 12dB
MD1200.1 Monoblock
Compact High-Power Micro Monoblock Amplifier
Dimensions (L×W×H)274 × 112 × 46 mm
Power @ 4Ω413W × 1
Power @ 2Ω682W × 1
Power @ 1Ω1150W × 1
Frequency Response @ 4Ω10Hz ~ 20kHz
Signal to Noise Ratio90dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4.0kHz
Working Voltage9V ~ 16V
Bass Boost0 ~ 12dB
MD1400.1 Monoblock
High Efficiency Micro Subwoofer Amplifier
Dimensions (L×W×H)320 × 112 × 46 mm
Power @ 4Ω545W × 1
Power @ 2Ω957W × 1
Power @ 1Ω1450W × 1
Frequency Response @ 4Ω10Hz ~ 20kHz
Signal to Noise Ratio90dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4.0kHz
Working Voltage9V ~ 16V
Bass Boost0 ~ 12dB
MD2000.1 Monoblock
Heavy Duty Micro Digital Amplifier
Dimensions (L×W×H)352 × 112 × 46 mm
Power @ 4Ω614W × 1
Power @ 2Ω1127W × 1
Power @ 1Ω1918W × 1
Frequency Response @ 4Ω10Hz ~ 20kHz
Signal to Noise Ratio90dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4.0kHz
Working Voltage9V ~ 16V
Bass Boost0 ~ 12dB
MD2500.1 Monoblock
Flagship Extreme Output Micro Monoblock Amplifier
Dimensions (L×W×H)400 × 112 × 46 mm
Power @ 4Ω1100W × 1
Power @ 2Ω1800W × 1
Power @ 1Ω2500W × 1
Frequency Response @ 4Ω10Hz ~ 20kHz
Signal to Noise Ratio90dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4.0kHz
Working Voltage9V ~ 16V
Bass Boost0 ~ 12dB
MD Series Multichannel Amplifiers
MD70.8 8-Channel
Ultra-Compact 8-Channel Micro Class D Amplifier
Dimensions (L×W×H)235 × 112 × 46 mm
Power @ 4Ω50W × 8
Power @ 2Ω70W × 8
Bridged Power @ 4Ω160W × 2
Frequency Response20Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity10V ~ 1.2V (4 Hi input)
Low Pass Filter35Hz ~ 350Hz
Hi Pass Filter25Hz ~ 250Hz
Working Voltage9V ~ 16V
MD50.6 6-Channel
Versatile 6-Channel Micro Class D Amplifier
Dimensions (L×W×H)214 × 112 × 46 mm
Power @ 4Ω50W × 6
Power @ 2Ω70W × 6
Bridged Power @ 4Ω160W × 1
Frequency Response20Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity10V ~ 1.2V (4 Hi input)
Low Pass Filter35Hz ~ 350Hz
Hi Pass Filter25Hz ~ 250Hz
Working Voltage9V ~ 16V
MD850.5 5-Channel
Compact All-in-One 5-Channel System Solution
Dimensions (L×W×H)287 × 112 × 46 mm
Power @ 4Ω75W × 4 + 190W × 1
Power @ 2Ω125W × 4 + 350W × 1
Bridged Power @ 4Ω220W × 2
Frequency Response10Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4kHz
Working Voltage9V ~ 16V
MD1100.5 5-Channel
High-Output Hybrid 5-Channel System Amplifier
Dimensions (L×W×H)331 × 112 × 46 mm
Power @ 4Ω134W × 4 + 260W × 1
Power @ 2Ω210W × 4 + 550W × 1
Bridged Power @ 4Ω410W × 2
Frequency Response10Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4kHz
Working Voltage9V ~ 16V
MD120.4 4-Channel
Stealth Micro 4-Channel Full-Range Amplifier
Dimensions (L×W×H)192 × 112 × 46 mm
Power @ 4Ω109W × 4
Power @ 2Ω173W × 4
Bridged Power @ 4Ω361W × 2
Frequency Response10Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4kHz
Working Voltage9V ~ 16V
MD140.4 4-Channel
Balanced Power 4-Channel Micro Amplifier
Dimensions (L×W×H)212 × 112 × 46 mm
Power @ 4Ω170W × 4
Power @ 2Ω276W × 4
Bridged Power @ 4Ω516W × 2
Frequency Response10Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4kHz
Working Voltage9V ~ 16V
MD225.4 4-Channel
Flagship Heavy-Duty 4-Channel Micro Amplifier
Dimensions (L×W×H)314 × 112 × 46 mm
Power @ 4Ω237W × 4
Power @ 2Ω342W × 4
Bridged Power @ 4Ω680W × 2
Frequency Response10Hz ~ 20kHz
Signal to Noise Ratio95dB
Input Sensitivity6V ~ 0.2V
Low Pass Filter50Hz ~ 20kHz
Hi Pass Filter10Hz ~ 4kHz
Working Voltage9V ~ 16V
Direct Factory Inquiry
Let’s build your amplifier lineup.
Get in touch with our engineering and B2B sales team. We respond to all qualified wholesale inquiries within 24 hours.
B2B Wholesale & OEM Factory Only. Minimum Order Quantity (MOQ) starts at 300 units.
